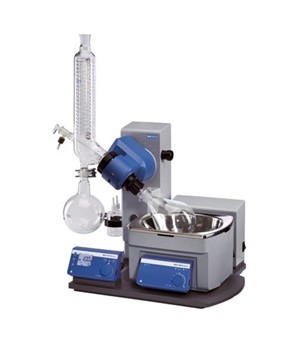

RV 10 basic V

3.983,15
The newly developed product line from IKA® in ergonomic, compact design with innovative functions to improve operating results. Rotary evaporators with integrated heating bath HB 10 basic (3 litre) inc. space saving vertical glassware (1 litre).

- Heating bath with adjustable safety circuit, "stand alone" operation possible, pivoting safety hood as accessory
- Safe and simple operation through ergonomically shaped operator unit in the front area
- Motorised lift (stroke 140 mm) with "safety stop" function, if the power cuts out the evaporator piston is automatically lifted out of the heating bath.
- Adjustable end position recognition to protect the glass from breaking
- Speed range from 20 to 280 rpm
- Smooth start from 100 rpm
- Digital speed display
- Moves right and left in interval operation for the drying process
- Timer function for time lapse controls
- Water-oil heating bath with integrated carry handles with safe handling
- Heats up quickly because of optimised bath volumes
- Cooling surface 1,200 cm²
- Push-off mechanism to loosen tightly fitting pistons
- Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)

Type of cooling vertical
Cooling surface 1200 cm2
Motor principle DC
Speed range 20 - 280 rpm
Reversible direction of rotation yes
Lift Motor
Stroke 140 mm
Heating temperature range room temp. - 180 °C
Heat output 1300 W
Heat control accuracy 5 ±K
Bath volume max. 3 l
Vacuum controller integrated no
Timer yes
Dimensions (W x H x D) 500 x 430 x 410 mm
Weight 19.6 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface no
Analog output no
Voltage 220 - 240 / 100 - 120 V
Frequency 50/60 Hz
Power input 1400 W
