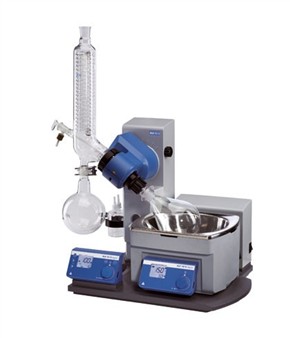

RV 10 digital V-C

The newly developed product line from IKA® in ergonomic, compact design with innovative functions to improve operating results. Rotary evaporators with integrated heating bath HB 10 digital (3 litre) inc. space saving vertical glassware, coated (1 litre).

- Heating bath with adjustable safety circuit, "stand alone" operation possible, pivoting safety hood as accessory
- Safe and simple operation through ergonomically shaped operator unit in the front area
- Motorised lift (stroke 140 mm) with "safety stop" function, if the power cuts out the evaporator piston is automatically lifted out of the heating bath.
- Adjustable end position recognition to protect the glass from breaking
- Speed range from 20 to 280 rpm
- Smooth start from 100 rpm
- Digital speed display
- Moves right and left in interval operation for the drying process
- Timer function for time lapse controls
- Water-oil heating bath with integrated carry handles with safe handling
- Heats up quickly because of optimised bath volumes
- Cooling surface 1,200 cm²
- Push-off mechanism to loosen tightly fitting pistons
- Digital water - oil heating bath with integrated carry handles
- Temperature control of the heating bath by a micro controller
- Digital temperature display
- Infrared interface for data transfer from the heating bath to the drive unit
- RS 232 interface for PC remote operation with labworldsoft
- Automatic operation with labworldsoft
- Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)

Type of coolingverticalCooling surface1200 cm2Motor principleDCSpeed range20 - 280 rpmReversible direction of rotationyesLiftMotorStroke140 mmHeating temperature rangeroom temp. - 180 °CHeat output1300 WHeat control accuracy1 ±KBath volume max.3 lVacuum controller integratednoTimeryesDimensions (W x H x D)500 x 430 x 410 mmWeight20 kgPermissible ambient temperature5 - 40 °CPermissible relative moisture80 %Protection class according to DIN EN 60529IP 20RS 232 interfaceyesVoltage220 - 240 VFrequency50/60 HzPower input1400 W
